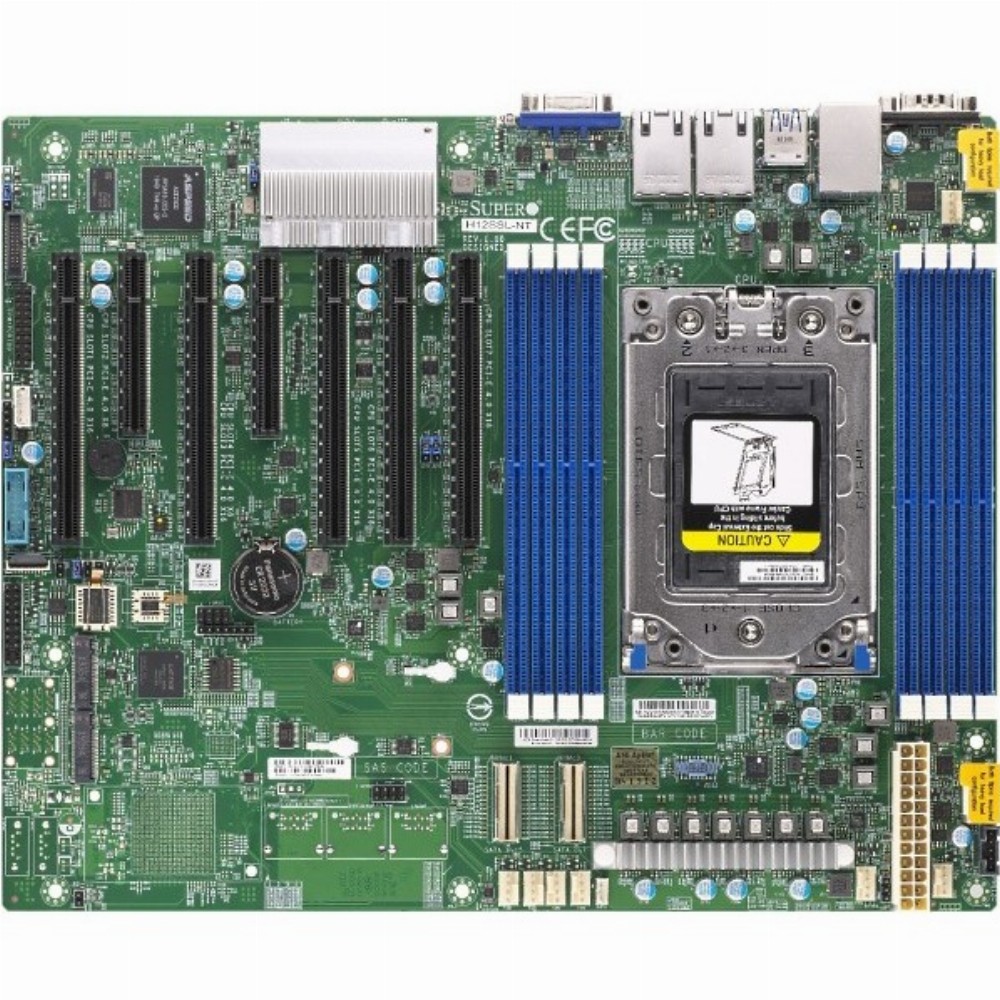

Single AMD EPYC™ 7002 Series Processor
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Expansion slots:
PCI-E 4.0 x16
PCI-E 4.0 x8
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
2 M.2,
2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
Dual 10GBase-T LAN via Broadcom BCM57416
ASPEED AST2500 BMC graphics
Up to 6 USB 3.0 ports
(4 rear + 2 via header)
7 PWM 4-pin Fans with tachometer status monitoring
